Heavy-Duty Conveyor Belt For Salt Washing Production Line, Anti-Corrosion, Wear-Resistant, Food-Grade Material

Brand: Ruitu Automation

Product origin: China

Categories: Salt Washing Machinery

Application: It is widely applied in salt washing plants (from raw salt feeding to the salt washing machine, water-washed salt conveying to the dewatering screen, and dewatered salt transferring to the drying/packaging process), salt refining production lines, industrial salt production, food-grade salt processing and other fields. It can convey various granular or powdered salts (sea salt, lake salt, rock salt) as well as other corrosive granular materials in the chemical and mining industries.

    Technical Characteristics

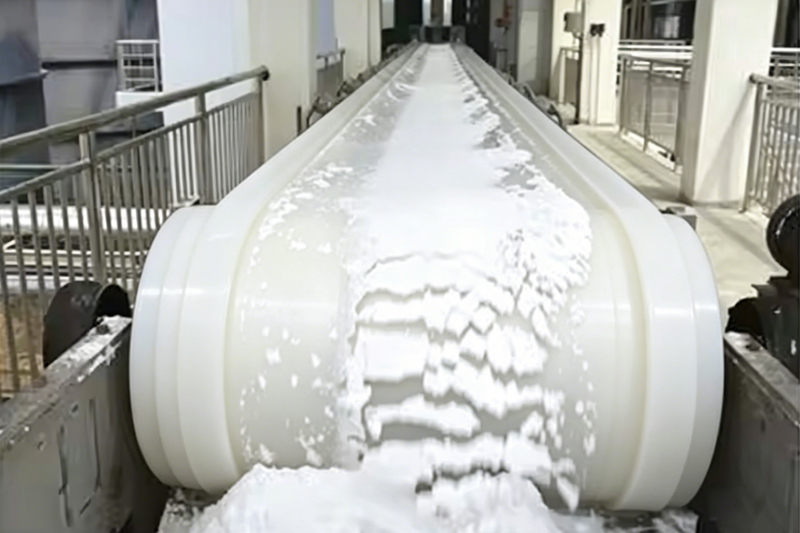

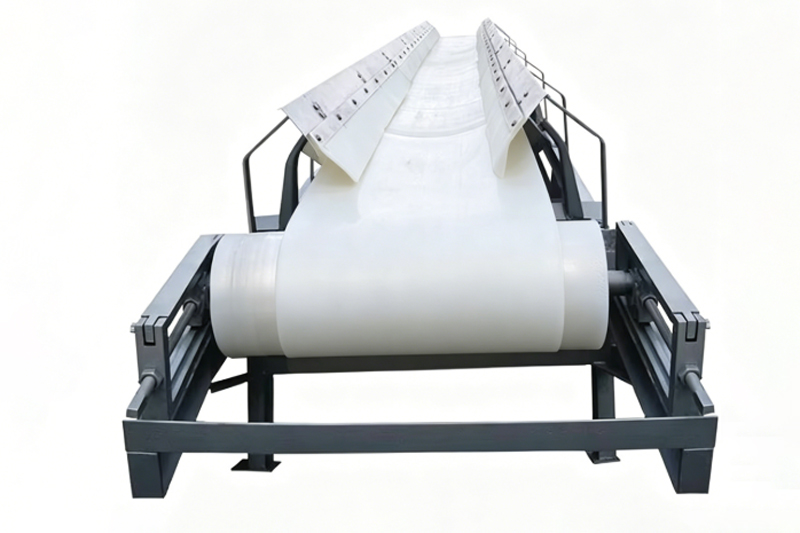

    Designed specifically for water-washed salt production lines, this conveyor belt can stably, efficiently and pollution-free transport raw salt, wet water-washed salt and dehydrated salt. It is designed for the highly corrosive conditions in salt production, ensuring smooth material flow throughout the cleaning, dehydration and packaging processes. Food-grade anti-corrosion materials: The conveyor belt is made of PU herringbone rubber, and the frame is made of 304/316 stainless steel or galvanized steel, which is resistant to salt water corrosion and ensures the cleanliness of salt products. Flexible customization and installation: The inclination angle is ≤ 30° (suitable for climbing conveyors), and the length is 3 - 300m, and the width is 500 - 1400mm, which can also be customized as needed, suitable for various factory layouts. High efficiency and low maintenance: Heavy-duty drive, conveying capacity 10 - 50 tons / hour; energy-saving and low consumption, with a built-in cleaning device + collection trough (removable), reducing material loss and downtime. Durable and safe operation: Reinforced frame, anti-deviation rollers and salt leakage prevention design. It can be perfectly integrated with salt washing machines, dehydration screens, packaging machines and other equipment.

    Working Principle

    A belt conveyor mainly consists of two rollers and a closed conveyor belt. The roller that provides power is called the drive roller (driving roller); the roller that changes the direction of the conveyor belt's movement is called the redirecting roller. The drive roller is driven by a motor through a reducer, and the conveyor belt is pulled by the friction between the drive roller and the conveyor belt. Materials are fed in at the feeding end, fall onto the rotating conveyor belt, and are transported to the unloading end by the friction of the conveyor belt.

    Technical Specifications

    TD75 Universal Belt Conveyor Capacity Table:

    Cross-sectional shape

    tape speed (m/s)

    Bandwidth B (mm)

    500

    650

    800

    1000

    1200

    1400

    Transportation Capacity G (t/h)

    Trough shape

    0.8

    78

    131

    1.0

    97

    169

    278

    435

    655

    891

    1.25

    122

    206

    348

    544

    819

    1115

    1.6

    156

    264

    445

    696

    1048

    1427

    20.

    191

    323

    546

    853

    1284

    1748

    2.5

    232

    391

    661

    1033

    1556

    2118

    3.15

    824

    1233

    1858

    2528

    4.0

    2202

    2996

    Parallel

    0.8

    41

    67

    118

    1.0

    52

    88

    147

    230

    345

    469

    1.25

    66

    110

    184

    288

    432

    588

    1.6

    84

    142

    236

    368

    553

    756

    2.0

    103

    174

    289

    451

    677

    922

    2.5

    125

    211

    350

    546

    821

    1110

    Note: The conveying capacity is calculated under the following conditions: material bulk density of 1T/m³, conveying inclination angle of 0°–7°, and material stacking angle of 30°.
    TD75 Universal Fixed Belt Conveyor Power Selection Table (Unit: kW)

    length (m)

    15m 30m 45m 60m 100m 150m 200m 300m

    tape width (mm)

    500mm

    1.0 1. 3 1. 7 2. O 3.2 4. 6 8.0 11.5

    650mm

    1.3 1.9 2.4 2.8 4.6 9.2 11.5 16.0

    800mm

    1.9 2.9' 3.6 4.3 9.7 14. O 17.5 24.3
